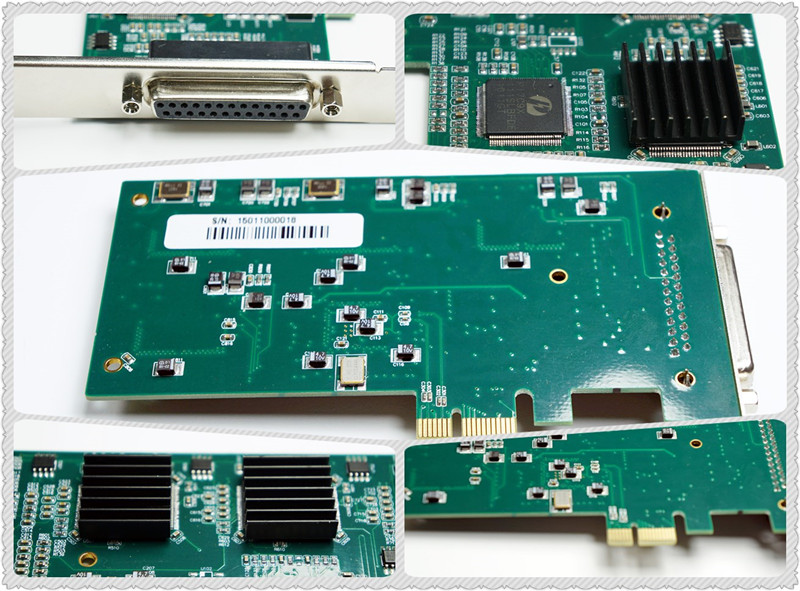

TC-CC-1204 4 Channels Video Capture Card

TC-CC-1204  can support standard PCI-E slot and provides the broadcast image effect, a card 4 channels, built-in high performing audio capture engine provides the high quality audio effect.   TC-CC-1204  supports all the captures and streaming media compressed tools and it is best suited for educational, training, industrial, medical, scientific, and security applications.











Application	video network broadcast
	streaming media
	video conference
	VOD system
	distance education
	remote control
	file maintenance, etc



Product feature	Support a card four channels, support 64bit PCI-E
	Adopt the newest 9Bit acquisition chip
	High performing audio acquisition function, support 32, 44.1 and 48KHz sampling
	The newest AV Stream WDM driven architecture
	Support the newest WMV9, Real10, MPEG4, Flash etc video format
	2-D Y/C Adaptive comb filter, self-adaptive to comb filter function
	High performing DMA technology, provide high efficient Overlay function
	Collect 30pfs and D1 uncompressed picture, and not take up CPU resource
	Support a high resolution of 720x576
	Fully support software development of the MS Directshow
	Support single multi-channel long time running
	Support multiple formats including: PAL, NTSC, SECAM
	Video AGC automatic gain control
	The brightness, contrast, chroma and gray can be real-time adjustable
Product specification	Standard analog video input (BNC,CVBS)
	Standard S-Video terminal input (DIN4)
	Unbalance analog audio input
